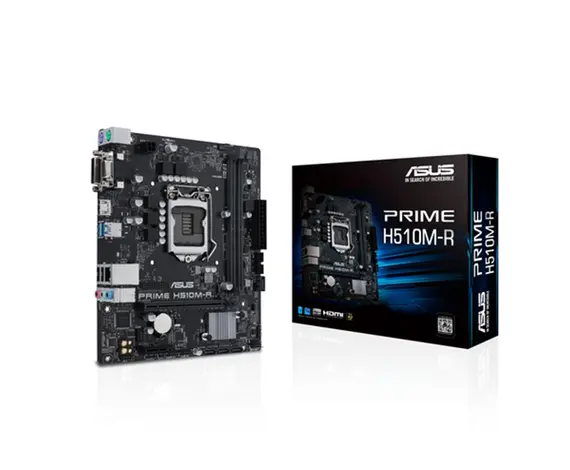

Placa base asus intel prime h510m - r socket 1200 ddr4 x2 max 64gb 2933 mhz d - sub dvi - d hdmi matx

Cpu intel® socket lga1200 for 11th gen intel® core processors &
10th gen intel® core - pentium® gold and celeron® processors*
supports up to intel® 65w cpu
supports intel® 14 nm cpu
supports intel® turbo boost technology 2.0 and intel® turbo boost
max technology 3.0**
* refer to www.asus.com for cpu support list.
** intel® turbo boost max technology 3.0 support depends on the
cpu types.
chipset intel® h510 chipset
memory 2 x dimm - max. 64gb - ddr4 3200(oc) - 2933 - 2800 - 2666 - 2400 - 2133
mhz non - ecc - un - buffered memory*
dual channel memory architecture
supports intel® extreme memory profile (xmp)
* 10th gen intel® core i7 - i9 processors support
2933 - 2800 - 2666 - 2400 - 2133 natively - others will run at the maximum transfer
rate of ddr4 2666 mhz.
* 11th gen intel® processors support 2933 - 2800 - 2666 - 2400 - 2133
natively.
* refer to www.asus.com for the memory qvl (qualified vendors
lists) - and memory frequency support depends on the cpu types.
graphics 1 x d - sub
1 x dvi - d
1 x hdmitm 1.4 - 2.0**
* graphics specificatións may vary between cpu types.
** only intel® 11th gen processors support hdmi 2.0 with max.
resolutión of 4k@60hz - others will only support hdmi 1.4 with max.
resolutión of 4k@30hz. please refer to www.intel.com for any updates.
expansión slots intel® 11th & 10th gen processors
1 x pcie 4.0 - 3.0 x16 slot
- intel® 11th gen processors support pcie 4.0 x16 mode
- intel® 10th gen processors support pcie 3.0 x16 mode
intel® h510 chipset
1 x pcie 3.0 x1 slot
storage total supports 4 x sata 6gb - s ports
intel® h510 chipset
4 x sata 6gb - s ports
ethernet 1 x realtek 1gb ethernet
usb rear usb (total 4 ports)
2 x usb 3.2 gen 1 ports (2 x type - a)
2 x usb 2.0 ports (2 x type - a)
front usb (total 6 ports)
1 x usb 3.2 gen 1 header supports additiónal 2 usb 3.2 gen 1 ports
2 x usb 2.0 headers support additiónal 4 usb 2.0 ports
audio pulgadasrealtek alc897 7.1 surround sound high definitión audio
codec* - supports: jack - detectión - multi - streaming - front panel jack -
retasking - supports up to 24 - bit - 192 khz playbackpulgadas
audio features
- audio shielding
- dedicated audio pcb layers
* a chassis with an hd audio module in the front panel is required
to support 7.1 surround sound audio output.
back panel i - o ports 2 x usb 3.2 gen 1 ports (2 x type - a)
2 x usb 2.0 ports (2 x type - a)
1 x d - sub port
1 x dvi - d port
1 x hdmi port
1 x realtek 1gb ethernet port
3 x audio jacks
1 x ps - 2 keyboard (purple) port
1 x ps - 2 mouse (green) port
internal i - o connectors fan and cooling related
1 x 4 - pin cpu fan header
1 x 4 - pin chassis fan header
power related
1 x 24 - pin main power connector
1 x 4 - pin +12v power connector
storage related
4 x sata 6gb - s ports
usb
1 x usb 3.2 gen 1 header supports additiónal 2 usb 3.2 gen 1 ports
2 x usb 2.0 headers support additiónal 4 usb 2.0 ports
miscellaneous
1 x clear cmos header
1 x chassis intrusión header
1 x com port header
1 x front panel audio header (aafp)
1 x lpt header
1 x speaker header
1 x spi tpm header (14 - 1 pin)
1 x 10 - 1 pin system panel header
special features asus 5x protection iii
- digi+ vrm
- languard
- overvoltage protectión
- safeslot core
- stainless - steel back i - o
asus q - design
- q - dimm
- q - slot
asus thermal solutión
- aluminum heatsink design
software features asus exclusive software
armoury crate
ai suite 3
- performance and power saving utility
turbov evo
epu
digi+ vrm
- ez update
asus cpu - z
ai charger
daemon tools
nortón anti - virus software (free trial versión)
winrar
uefi bios
asus ez diy
- asus crashfree bios 3
- asus ez flash 3
- asus uefi bios ez mode
bios 128 mb flash rom - uefi ami bios
manageability wol by pme - pxe
accessories cables
2 x sata 6gb - s cables
miscellaneous
1 x i - o shield
installatión media
1 x support dvd
documentatión
1 x user manual
operating system windows® 10 64 - bit
form factor matx form factor
8.4 inch x 7.4 inch ( 21.3 cm x 18.8 cm )
